Microkit


Catalogue and price list

Components for miniature designs

Euro € and US Dollar $ prices are indicative and depend on the change. We have to do the bill in Swiss francs (CHF). Minimum order 40 CHF.
Paiment by Visa or Mastercard/Eurocard after confirmation of order.
Shipping and handling to US and Asia costs USD 6.00 for small parts (below 50 grams and 20mm thick) and USD 15.00 for above 20mm thick shipments. Air-mail delivery takes 4 to 15 days.
Send an e-mail with the list of components you need. Use our Excel Order file or the less convenient html file).

Module 0.2 gears see documentation
Available now from our distributors

Two new high precision gears, module M02, have been specially molded for DIDEL.

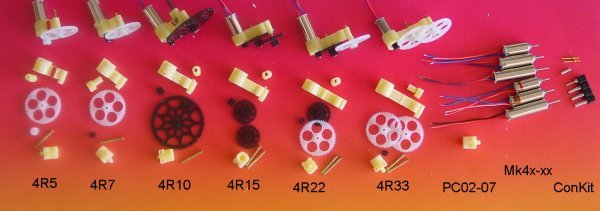

A 5:1 gearbox (code 4R5) and a 6.7:1 gearbox (code 4R7) are available now for small propellers and 5-8 grams plane using ther 20mAh LiPoly.

A 25:1 gearbox (code 4R25) and propeller connectors (code PC07) are available for 5-10 grams planes.

G209-063

9 teeth 0.006g
Ø 2.2mm
Hole 0.62mm

G209-071

9 teeth 0.006g
Ø 2.2mm
Hole 0.71mm
CHF 2.90
  € 1.90   $ 2.30
CHF 3.10   € 2.00   $ 2.40

G212-063

12 teeth 0.011g
Ø 2.8mm
Hole 0.61mm

G212-071

12 teeth 0.011g
Ø 2.mm
Hole 0.71mm
CHF 2.90
  € 1.90   $ 2.30
CHF 3.10   € 2.00   $ 2.40
G240-077
40 teeth 0.046g
Ø 8.4mm
Hole 0.77mm
G260-078
60/12 teeth light 0.067g
Ø 12.4mm
Hole 0.78mm
CHF 8.50
€ 5.60   $ 7.10
CHF 9.10
  €6.10  $ 7.30
G290-077
90 teeth 0.139g
Ø 18.4mm
Hole 0.63mm
CHF 10.40
  € 6.90   $ 8.70


We have a choice of mod 0.2 gearboxes but we stopped our prop sets.


Module 0.3 gears - see documentation

Most of these gears are available now from our distributors
G3810L
81/12 teeth light 0.34g
Ø 24.9 mm
Bore 0.77mm
G348L
48/12 teeth light 0.14g
Ø 15.0 mm
Bore 0.78mm
CHF 10.40 € 6.90   $ 8.40
CHF 6.60   € 4.40  $ 5.30
G360L
60/12 teeth light 0.19g
Ø 18.6
Bore 0.78mm
G348
New
48/12 teeth
Ø 15.0 mm
Bore 0.78mm
CHF 6.60   € 4.40   $ 5.30
CHF 6.60   € 4.40  $ 5.30
G336
36/12 teeth 0.12g
Ø 11.4mm Hole 0.79mm
G360S

60/12 teeth 60 slots
Ø 18.6mm
Bore
0.76mm

CHF 4.10   € 2.60   $ 3.30
CHF 7.20   € 4.80   $ 5.90

G348S
48/12 teeth 36 slots
Ø 15.0 Hole 0.79mm

CHF 7.20   € 4.80   $ 5.9
G309-061
9 teeth, for 0.6mm shaft
For 4mm short pagers
G312-078
12 teeth pinion 0.04g
Ø 4.2 Hole 0.78mm
CHF 1.60  € 1.00   $ 1.20
CHF 1.40   € 0.90   $ 1.10
G309-071
9 teeth, for 0.7mm shaft
For 4mm pagers
G312-097
12 teeth pinion 0.04g
Ø 4.2 Hole 0.97mm

CHF 1.60  € 1.00  $ 1.20
CHF 1.40   € 0.90   $ 1.10
G309-078
9 teeth, for 0.8mm shaft
For 6mm and several 7 mm pagers

To be reamed or press-fitted
G309-097
9 teeth, for 1.00mm shaft
For our 7mm pager and 10, 12 mm motors
CHF 1.40  € 1.00  $ 1.10
CHF 1.60 € 1.00 $ 1.20
G309-081
9 teeth, for 0.8mm shaft
For 6mm and several 7 mm pagers

Reamed to 0.81mm to fit nicely
GW338-062
New

worm gear
dia 3.0mm
0.62mm bore
For 4mm short pagers

CHF 1.80 € 1.10 $ 1.30
CHF 7.20 € 4.50 $ 5.80

Pinions with 0.6 to 0.8 mm bore are loose on motor axis, in order to avoid an important axial insertion effort on the motor. The gear is glued with a minimum amount of Cyanolit. Pinions for 1mm motor are tight, because gluing POM gears is acceptable only for very low torques. See the gearboxes we propose for slow flyers.

Gear will be loose on an axis 0.02mm smaller, and tight on an axis 0.02 to 0.05 mm, depending on the shaft diameter.

Rivets
6 pieces
RI 073 ø 0.73 x 8mm
CHF 0.60  € 0.40   $ 0.50

RI 080 ø 0.80 x 8mm
RI 094 ø 0.94 x 8mm
RI 150 ø 1.50x 12mm
Brass bearing
6pieces
BB1808 ø 1.8 x 1.9mm bore ø 0.81 mm
CHF 1.60   € 1.10   $ 1.20
BB1810 ø 1.8 x 1.9mm bore ø 1.00 mm

Quicklock
10 pieces

QL08 ø 4 x 0.2mm
For axis 0.75 to 0.82mm
CHF 1.60   € 1.10   $ 1.20
QL10 ø 4 x 0.2mm
For axis 0.95 to 1.00mm
Washer
10 pieces
W11 ø1.1 x ø3.2mm x 0.3mm
CHF 1.20   € 0.80   $ 0.95
See our gear documentation with design examples

Pager motors (see our specifications and gear insertion recommendations)
Most of these motors are available now from BSD USA, DWE USA, MicroWorks AU and G.Stabler UK

MK04S-10
1.2V  10-12 Ohm
Ø 4 x 8mm  0.46 g
shaft 0.60mm
MK04S-24
3.0V  28-32 Ohm
Ø 4 x 8mm  0.46 g
shaft 0.60mm
 CHF 4.50   € 3.00   $ 3.60
 CHF 4.50   € 3.00   $ 3.60
MK04-10
1.2V  13-15 Ohm
Ø 4 x 11mm  0.66 g
shaft 0.70mm
MK04-40
2.4V  40-45 Ohm
Ø 4 x 11mm  0.66 g
shaft 0.70mm
 CHF 4.50   € 3.00   $ 3.60
 CHF 4.50   € 3.00   $ 3.60
MK04-8.5
1.2V  8.5 Ohm
Ø 4 x 11mm  0.79 g
shaft 0.70mm
MK04L-10
2.4V  10-13 Ohm
Ø 4 x 14mm  0.79 g
shaft 0.70mm
 CHF 4.50   € 3.00   $ 3.60
 CHF 4.50   € 3.00   $ 3.60

MK06-06
1.0V  6Ohm
Ø 6 x 12mm  1.32 g
shaft 0.80mm

CHF 3.50   € 2.30   $ 2.80
MK06-04.5
0.8V  4.5 Ohm
Ø 6 x 12mm  1.32 g
shaft 0.80mm

CHF 3.50   € 2.30   $ 2.80

MK06-10
1.2V  10-12 Ohm
Ø 6 x 12mm  1.32 g
axis 0.80mm
MK06-30
2.4V  30-35 Ohm
Ø 6 x 12mm  1.32 g
shaft 0.80mm
CHF 3.50   € 2.30   $ 2.80
CHF 3.50   € 2.30   $ 2.80
MK06L-10
1.2V  10-12 Ohm
Ø 6 x 15mm  1.63 g
shaft 0.80mm

CHF 3.50   € 2.30   $ 2.80

MK07-10
1.2V  10 Ohm
Ø 7x 17 mm  2.78 g
s 1.00mm

Mk07-3.3
orange

1.2V  3.3 Ohm
Ø 7x 17 mm  2.78 g
shaft1.00mm
CHF 4.10
 € 2.70   $ 3.30
CHF 4.90
 € 3.30   $ 4.10
MK07-2.3
red
1.2V  10 Ohm
Ø 7x 17 mm  2.78 g
shaft 1.00mm
MK07-1.7
blue
1.2V  1.7 Ohm
Ø 7x 17 mm  2.78 g
axis 1.00mm
CHF 5.50
 € 3.70   $ 4.60
CHF 5.50
 € 3.70   $ 4.60

For applications for indoor models, see our measures

Stepping motors (see torque characteristics)
MS30

Switec MS 280 Ohm
Reduction
1:180
Ø30 mm  Axis 1.00 mm




CHF 19.50  € 13.00  $ 16.00


Mod 0.3 gearboxes for very slow flyers
(you can see our past list , but they are not available any more)

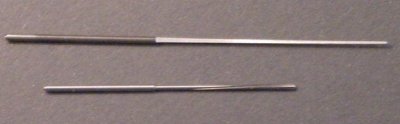

Reamers
WB0205 Watchmaker broach (conical reamer) 0.20 to 0.46mm, conicity 1%
CHF 2.70   € 1.80   $ 2.20
WB0407 Watchmaker broach (conical reamer) 0.40 to 0.75mm, conicity 1%
CHF 2.70   € 1.80   $ 2.20
WB0712 Watchmaker broach (conical reamer) 0.70 to 1.20mm, conicity 1%
CHF 2.70   € 1.80   $ 2.20
WB1118 Watchmaker broach (conical reamer) 1.10 to 1.80mm, conicity 1%
CHF 2.70   € 1.80   $ 2.20




Neodyme-Fer Magnets -- Great for slow flyers - see our documentation and our Bahoma system (Battery holding)
Mag1208   Ø 1.2 x 0.8mm 0.006 g  lift >20g
10 pieces 3.50CHF  ca  € 2,20  $ 3.00
Mag1512   Ø 1.5 x 1.2 mm 0.014 g  lift >30g
10 pieces 3.50 CHF ca  €2.20 $ 3.00
Mag2012   Ø 2 x 1.2 mm 0.024g  lift > 80g
10 pieces 4.00CHF ca  €2.80  $ 3.30
Mag2022   Ø 2 x 2.2mm 0.06g  lift > 100g
10 pieces 4.50CHF ca  €3  $ 3.80
Mag2530  Ø 2.5 x 3mm 0.065g   lift > 200g
10 pieces 4.60CHF ca  €3  $ 4.80
Mag3015  Ø 3 x 1.5mm 0.065g   lift > 150g
10 pieces 4.50CHF  ca €3  $3.80
Mag4015  Ø 4 x 1.5mm   0.14g   lift > 200g
CHF 0.50 ca  € 0.30  $ 0.60


Optical quadrature encoder (see our documentation)
H7001-V for slots in the lead axis
CHF 4.50   € 3.00   $ 3.60
H7001-H for slots perpendicular
CHF 5.50   € 3.65  $ 4.40
IR LED
CHF 2.50   € 1.65  $ 2.00
With gear 360S, 4x60 changes are generated per turn. A simple microprocessor program can measure up to over 6000 RPM (PIC 16F84 4MHz)
Our old gear documentation gives several indications. A more detailed application note still need improvements. One should be careful of the orientation of the marks on leads, and to the revert packaging compared to LEDs: the phototransistors face the flat surface.

Miniature joystick

JN1 JN2
Miniature joystick with return-to-center

CHF 7.50   € 5.00   $ 6.70


CH-1092 Belmont/Lausanne
Switzerland
Tel +41 21 728-6156
Fax   -6157

info@didel.com

www.didel.com

Last update: 070812 jdn
